Gabion boxes are wire mesh cages filled with stone, used for building retaining walls, erosion control structures, and noise barriers.

They’re strong, flexible, and cost-effective—ideal for civil, coastal, and landscape engineering. If you’re buying in bulk, the right mesh, coating, and design specs will determine long-term success.

Introduction

Whether you’re stabilizing a slope, protecting a riverbank, or specifying materials for a large-scale infrastructure project, gabion boxes have probably landed on your shortlist. And not by accident.

They’ve earned that spot.

Gabion baskets are now a go-to across civil engineering, roadworks, coastal protection, and landscaping projects worldwide. But if you’re buying gabions—especially in bulk from a Chinese manufacturer—you’ll want a complete picture. What are they really made of? How do you ensure they’ll hold up in the field? And how do you avoid costly mistakes that only show up after delivery?

This guide is built specifically for professionals like you: contractors, wholesalers, project managers, and procurement teams responsible for technical sourcing at scale. You won’t find fluff here—just clear, field-tested information designed for real-world buying decisions.

Let’s dig in.

What Is a Gabion Box – and Why Engineers Use It

At its core, a gabion box (also called a gabion basket) is a modular wire container filled with stones or similar materials on-site. Once packed, these cages can be stacked or linked to create retaining walls, erosion barriers, sound barriers, or load-bearing support structures.

The word “gabion” comes from the Italian gabbione, meaning “big cage.” And that’s exactly what it is—an engineered cage that, once filled, turns into a highly stable and adaptable unit capable of performing in punishing environments.



Some people might ask “Why not just use concrete?” Simple: gabions drain naturally, flex with the terrain, don’t need curing time, and can be installed quickly using local materials. On sites where labor or access is limited, they save time and money.

And if you’re sourcing gabions overseas, particularly from Chinese manufacturers, it’s not just the wire mesh that matters—it’s the specs, the coating, the accessories, and even how they’re packed in the container.

Why Gabions Became a Global Standard in Engineering Projects

Gabions have a long track record. They’ve been around since ancient times, initially for military defense and later for river control. The modern wire-mesh version took shape in the late 1800s, when Italian engineers started using galvanized steel baskets to protect riverbanks.

Since then, gabions have evolved from niche hydraulic tools into global infrastructure solutions. Today, you’ll find them:

• Supporting highways in the Andes
• Holding back embankments in Southeast Asia
• Lining rivers in Europe
• Even forming high-end façades in urban architecture

One project manager we worked with in Peru put it best: “Gabions aren’t pretty at first glance. But they do the job, and they last.” That’s why they’re still specified into thousands of public and private sector tenders every year.

Inside a Gabion Box: Key Components That Determine Quality

If you’re evaluating suppliers, it’s crucial to understand the components of a gabion box. Why? Because wire material, mesh type, coating, and internal bracing all affect price, performance, and compliance.

Let’s break it down from a buyer’s perspective.

1. The Gabion Wire

Gabion wire is the skeletal frame of your gabion. Most are made from hot-dip galvanized steel wire, but in coastal or acidic conditions, you’ll want to upgrade to Galfan-coated wire (zinc–aluminum alloy) for better corrosion resistance. For even more protection, PVC coating is layered on top.

You’ll generally choose between:

• Welded mesh: Rigid, square-shaped, used in architectural or engineered walls where precision matters

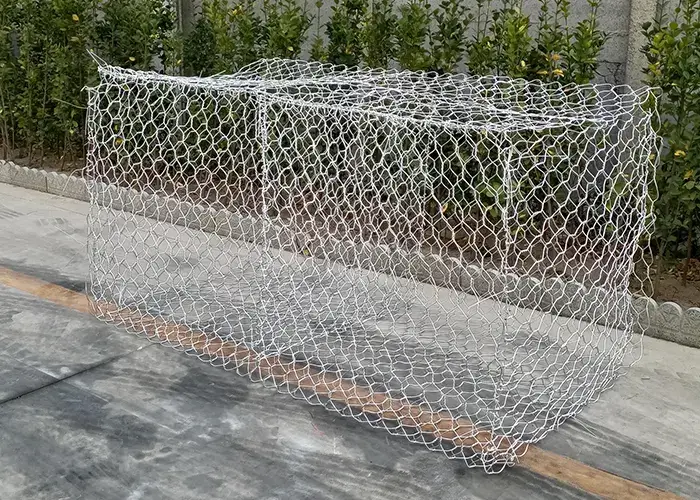

• Woven hexagonal mesh: Flexible, best for unstable or hydraulic terrains

Real talk: A buyer in Indonesia once skipped the Galfan upgrade for a coastal road project. After three monsoon seasons, the baskets corroded early. Rework costs far outweighed the initial savings. Choose your coating like the structure depends on it—because it does.

2. Mesh Size

The opening size of the mesh determines what kind of rock you can use, how it drains, and what the final surface looks like.

• Woven mesh: 60×80 mm or 80×100 mm
• Welded mesh: 50×50 mm up to 100×100 mm

Smaller mesh = more refined appearance and tighter fill
Larger mesh = faster installation, but you’ll need bigger stones

Tip: Double-check local rock availability. We’ve seen buyers order 80×100 mesh only to realize their local quarry only supplies 60–80mm fill—not big enough to stay put.

3. Internal Diaphragms

For baskets longer than 2 meters, internal diaphragms (aka partitions) are essential. They prevent the sides from bulging and keep the structure stable over time.

Industry standard is one diaphragm every 1 meter. But not all suppliers include them in quotes—always confirm.

4. Stone Fill (Supplied On-Site)

Most gabion projects use local fill—angular stones between 100–200 mm. Why angular? Because they lock in place better than round river rock.

Pro buyer note: Always factor in the fill type early. Poor stone quality causes drainage issues, bulging, and even collapse. We’ve had projects halted because the contractor assumed “any stone would do.” It won’t.

Where Gabion Boxes Are Used : 10 Real-World Applications

Understanding where gabions are used helps you specify the right mesh type, coating, and size. Here’s where our global clients deploy them—and what matters most in each use case.

1. Retaining Walls

Gabion retaining walls hold back soil on slopes, road cuts, and embankments. Their weight provides mass and stability, while their porous design naturally relieves hydrostatic pressure. That means no extra weep holes or complicated behind-wall drainage systems.

Compared to concrete walls, gabions are faster to install, easier to modify on-site, and better suited for soft or shifting ground. That’s why they’re popular in areas with seismic risk or irregular terrain.

2. Erosion Control

You’ll find gabions lining rivers, reservoirs, and canals. When water flow threatens soil stability, the open mesh of gabion structures slows down hydraulic energy and holds the bank in place.

This is a preferred method in Asia and South America, where seasonal flooding requires structures that don’t crack or wash out under stress.

3. Coastal Protection

Along shorelines, gabion walls serve as wave breakers, groynes, and revetments. Their weight and flexibility allow them to absorb wave impact while adapting to changing tides.

From our own factory experience: We once supplied PVC-coated gabions for a Caribbean marina project. The engineer wanted a softer shoreline solution that wouldn’t reflect wave energy like concrete. After two hurricane seasons, the gabions were still intact—and the client came back for Phase 2.

4. Architectural Landscaping

Gabions aren’t just for infrastructure—they’re also used in upscale residential and commercial projects. Welded gabions filled with decorative stone create modern-looking walls, fences, and facades.

Many designers now integrate planters, benches, and even water features with gabion structures, using them as both load-bearing and aesthetic elements.

5. Acoustic Barriers

In highway and railway projects, tall gabion walls filled with dense material can absorb and block noise. Unlike traditional noise walls, gabions are modular and can incorporate recycled material as fill.

They also allow airflow and greenery, making them a visually and environmentally friendlier option.

6. Bridge Abutments

Gabions protect bridge abutments and culverts from water scour and differential settlement. Their permeability allows water to pass without building pressure—crucial in flood-prone or seismic areas.

They’re often specified in government projects because of their long service life and ease of maintenance.

7. Check Dams & Water Diversion

In arid or degraded land, small gabion check dams help trap sediment and slow down runoff. This technique is widely used in reforestation and slope rehabilitation.

Gabion check dams are easy to scale up across hundreds of meters without needing heavy machinery—just stone, baskets, and labor.

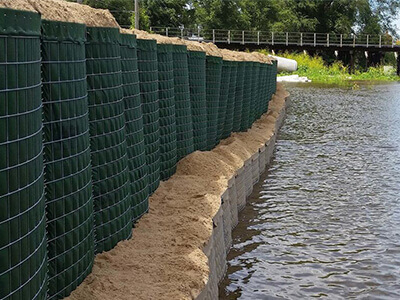

8. Emergency Flood Control

For disaster response, gabions can be rapidly deployed as temporary flood walls. In particular, HESCO-style gabions (lined with geotextile) can be filled with sand or soil to build quick levees or barriers.

Some of our buyers keep flat-packed gabions in inventory during flood season, ready to deploy within hours.

9. Roadside Slope Protection

Along highways, gabions are used as step walls or toe protection at the base of cut slopes. They help prevent landslides and reduce soil creep over time.

Since they don’t need curing time, gabion walls can be installed in fast-paced road construction projects where delays are costly.

10. Urban Design and Furniture

In urban parks and plazas, gabions are increasingly used as creative design elements—bases for benches, light columns, or perimeter barriers. Welded gabions filled with glass rock or polished stone offer both texture and function.

Gabions in public spaces tend to attract attention, especially when paired with lighting or plantings.

Why Professionals Prefer Gabion Boxes Over Concrete or Alternatives

For professionals sourcing materials at scale, gabions offer a rare combination of performance, price, and logistical ease.

1. Naturally Free-Draining

Gabions allow water to pass through freely, which eliminates the buildup of hydrostatic pressure. That means you won’t need extra drainage systems, weep holes, or expensive waterproofing membranes behind walls.

This saves both time and engineering costs, especially in sites where groundwater or runoff is a concern.

2. Flexibility & Seismic Resilience

Unlike rigid concrete walls, gabions don’t crack when the earth shifts. Their segmented and rock-filled structure moves slightly with the terrain, absorbing settlement and seismic stress.

In regions like Chile, Japan, or Nepal, gabions are often chosen specifically for their ability to bend without breaking.

3. Long Service Life

With the right coating, gabion baskets can last 30–100 years. Galfan-coated or PVC-coated wire resists corrosion from salt spray, acidic soil, and UV exposure.

We once supplied Gabion baskets for a mountain road in Colombia. The engineer recently told us: “Ten years on, still zero rust, even in rainy season.” That’s the kind of long-term peace of mind professional buyers value.

4. Cost-Effective Installation

Gabions are easy to install with basic tools and unskilled labor. Because they use local stone as fill, you save on both logistics and material costs.

They’re especially popular in remote areas where transporting concrete or specialized labor isn’t practical.

5. Sustainable & Green Infrastructure

Gabions blend with the environment. They use local or recycled material, support plant growth, and promote water infiltration. That’s why they’re often used in sustainable urban drainage systems (SUDS).

In Europe and Australia, they’re even certified for use in green infrastructure projects.

Before You Buy: Critical Factors That Can Make or Break Your Project

Buying gabions in bulk? These are the red flags and prep tips that matter.

Space Requirements

Gabion walls are gravity structures—thicker than concrete. A 1-meter-high wall may need a 0.5–1.0 meter base width. Always factor this into your layout and material estimation.

We’ve seen buyers underestimate wall thickness and run into right-of-way issues during installation.

Foundation Prep

Gabions need a compacted, level base. If the soil isn’t properly prepared, you risk leaning or bulging. A simple gravel base or concrete strip footing often does the job—just don’t skip it.

Your installer should also compact the backfill behind the wall to prevent water buildup or structural movement.

Wire Quality

Request coating specs and tensile strength in the RFQ. Ask for ASTM A975 (U.S.) or EN 10223 (EU) compliance, especially for public projects. Poor wire = premature corrosion = structural failure.

A shortcut in coating may shave off 5% in price, but cost you 10× more in rework.

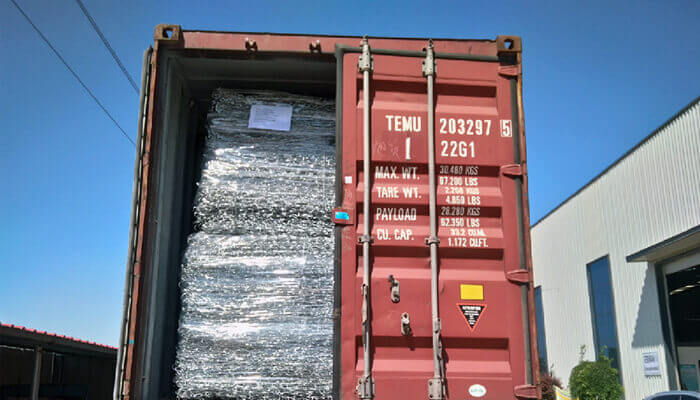

Shipping Format

Most gabions ship flat-packed for freight efficiency. Confirm dimensions, bundle count, and what accessories (spirals, lacing wire, stiffeners) are included.

Tip: Ask for a loading plan. We often provide 40HQ container layouts that maximize cubic usage and reduce surprises at the port.

Assembly Time

Gabions are simple to install but labor-intensive. For large projects, pre-filling or pre-assembling can save weeks. Some buyers even use on-site cages for temporary stacking or on-site preparation.

If time is of the essence, consider the labor required for assembly and filling.

How to Source Gabion Boxes from China Without Quality Problems

If you’re working with a factory like ours in China, make sure your RFQ covers:

• Wire Material: Galvanized, Galfan, or PVC-coated
• Diameter: Usually 2.7–4.0 mm
• Mesh Type: Woven (hexagonal) or welded
• Mesh Size: e.g., 60×80, 80×100, or 100×100 mm
• Basket Size: Standard 1×1×1m, 2×1×1m, or custom
• Internal Diaphragms: Every 1 meter? Included or extra?
• Accessories: Lacing wire, spirals, bracing rods
• QA: Coating thickness, wire tensile test reports, certificates
• Packing: Flat-packed with clear label & bundle list
• Lead Time: Production + port + shipping window
• MOQ: Most factories accept 1×20 feet container as base volume

We support full container orders worldwide and small order for your small projects. Our team provides drawings, spec sheets, packing lists, and technical support from inquiry to delivery.

Conclusion: Are Gabion Boxes Right for Your Project?

Gabion baskets offer something rare in civil and landscape engineering: a solution that’s strong, affordable, adaptable, and easy to source.

Whether you’re facing erosion, seismic movement, sound mitigation, or just need a structure that blends into the terrain, gabions meet the brief. And when sourced from a qualified manufacturer, they’ll perform for decades with minimal upkeep.

From highways to riversides, flood zones to modern plazas—gabions are no longer “just rocks in a cage.” They’re an engineer’s tool, a landscaper’s medium, and a buyer’s long-term ally.

Got a project in mind? Reach out. We’ll help you find the right mesh, size, and coating—and get it to your site, anywhere in the world.

Frequently Asked Questions

Q: How long do your gabion baskets last?

A: With Galfan or PVC coating, our gabions last 50 years depending on exposure. We provide coating thickness and salt spray test reports on request.

Q: Can you supply custom sizes or coatings?

A: Yes. We manufacture to spec—including mesh size, wire gauge, basket dimension, and coating type. MOQ applies.

Q: How are gabions packaged?

A: Flat-packed in bundles, with lacing wire or spiral binders included. Each bundle is labeled with specs and quantities.

Q: Do you provide quality certificates?

A: Yes. All shipments include tensile strength test reports, coating thickness records, and material traceability.

Q: What’s your typical lead time?

A: Around 15–25 days depending on order size. During off-season, rush orders are possible.
